作者hskao (Fermi快出來讓58X0降價啦)
看板VideoCard
標題[測試]微星5770 1GB 卡夾OC公版"簡測"
時間Sat Apr 17 09:53:02 2010
※ [本文轉錄自 PC_Shopping 看板]
作者: hskao (Fermi快出來讓58X0降價啦) 看板: PC_Shopping
標題: [測試]微星5770 1GB 卡夾OC公版"簡測"
時間: Sat Apr 10 18:51:44 2010
<測試平台>
CPU (中央處理器)：AMD X4 955BE(C3) OC3.6G(200*18)
MB (主機板)：華碩M4A785TD-V EVO (BIOS:2002)
RAM (記憶體)：威剛DDR3-1600 2GB*2 (9-9-9-24/1.65V)
VGA (顯示卡)：微星5770 1GB 卡夾OC公版 (865/4800)
HDD (硬碟)：日立7K1000.B 1TB
DVD-RW (燒錄機)：SONY V200S(黑)
PSU (電源供應器)：OCZ ModXStream Pro 500W
CHASSIS (機殼)：CM Gladiator 600
MONITOR (螢幕)：HP LP2475W
CPU Cooling ：OCZ Vendetta 2 散熱器

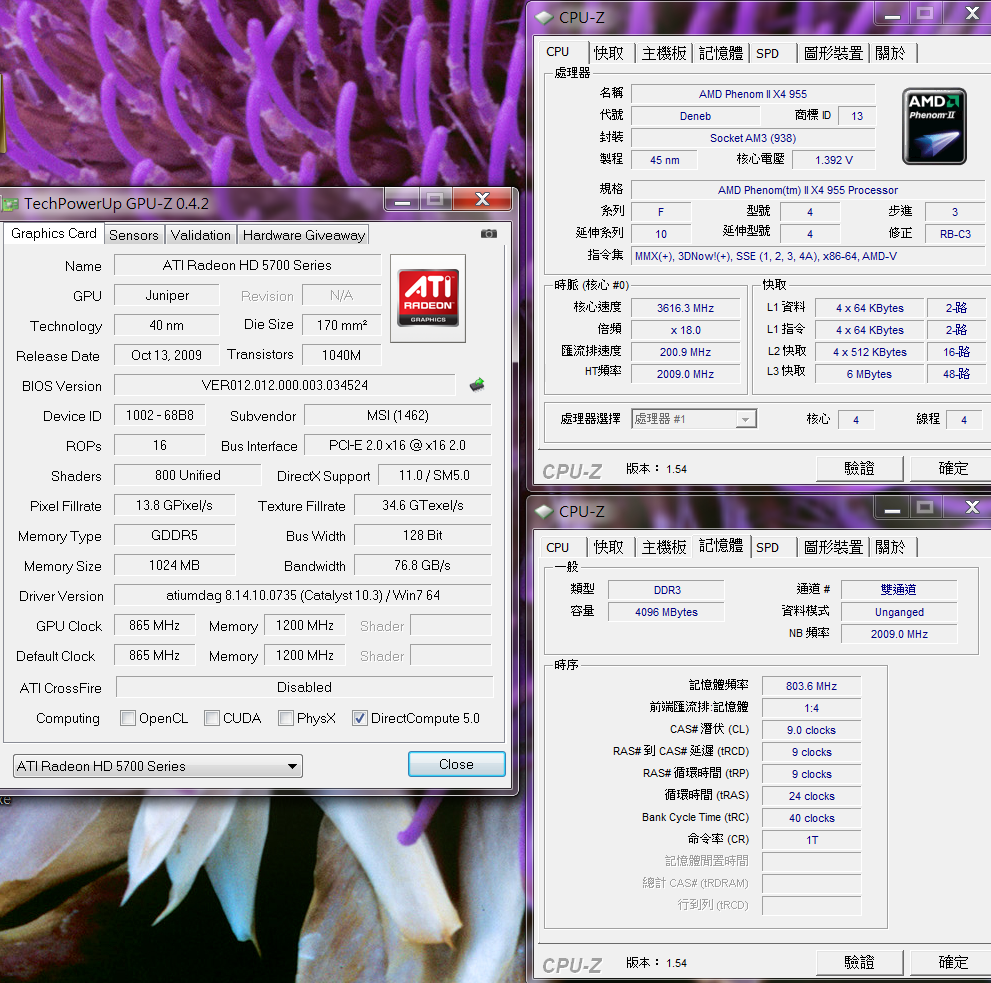

http://i279.photobucket.com/albums/kk149/hskao1983/955-1600-5770.png
Windows7 64bit
催化劑10.3b

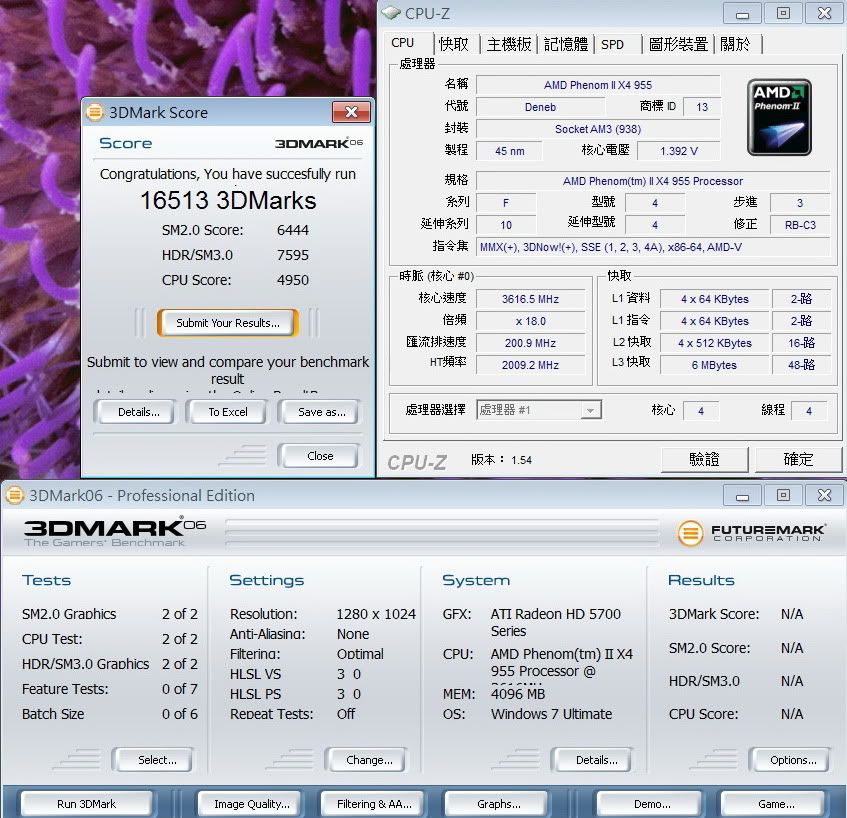

3DMark06 全預設 (865/4800)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3d06-1.jpg
16513

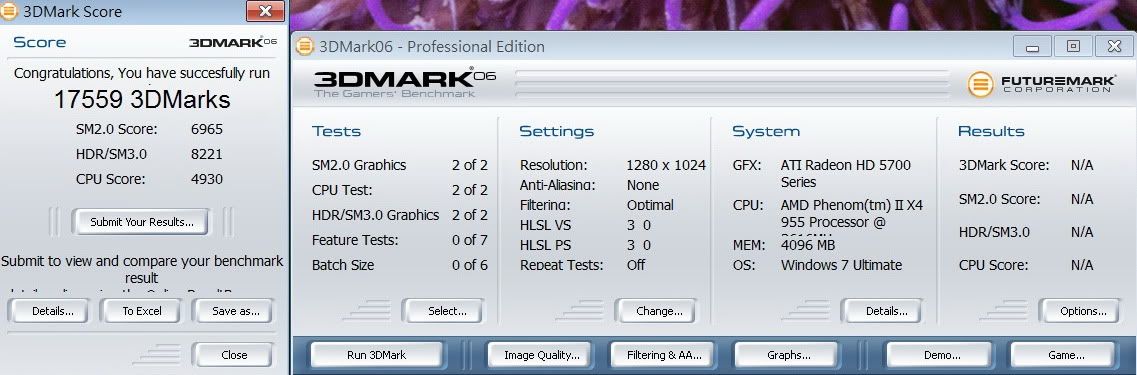

3DMark06 全預設 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3d06-1-oc.jpg
17559

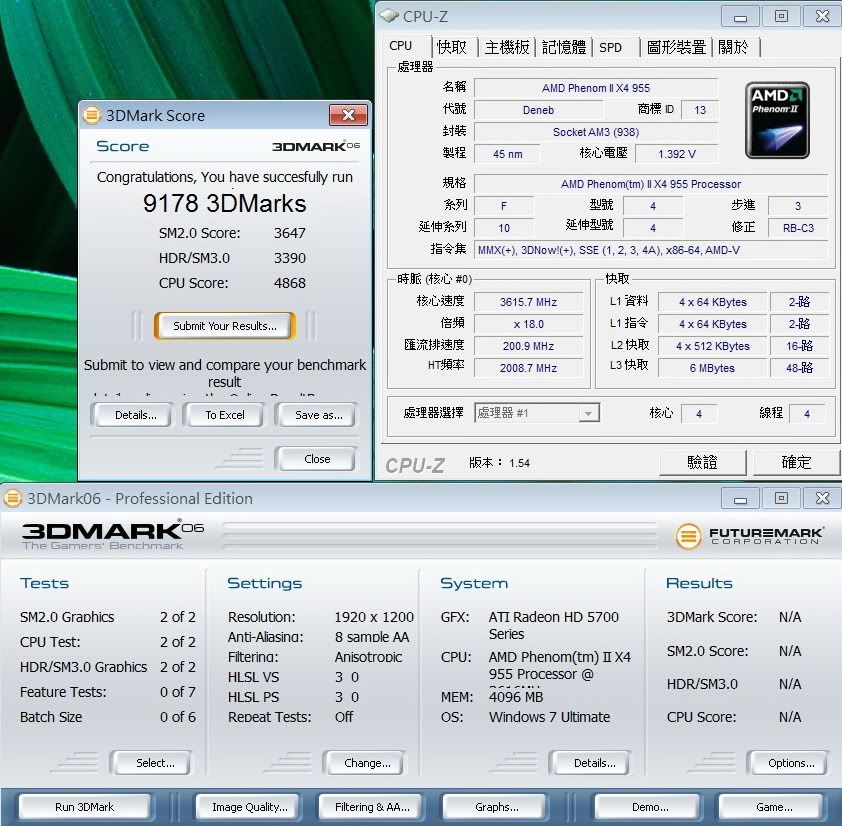

3DMark06 1920x1200 8AA/16AF (865/4800)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3d06-2.jpg
9178
3DMark06 1920x1200 8AA/16AF (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3d06-2-oc.jpg
10248
3DMark Vantage
P10354
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-p.jpg

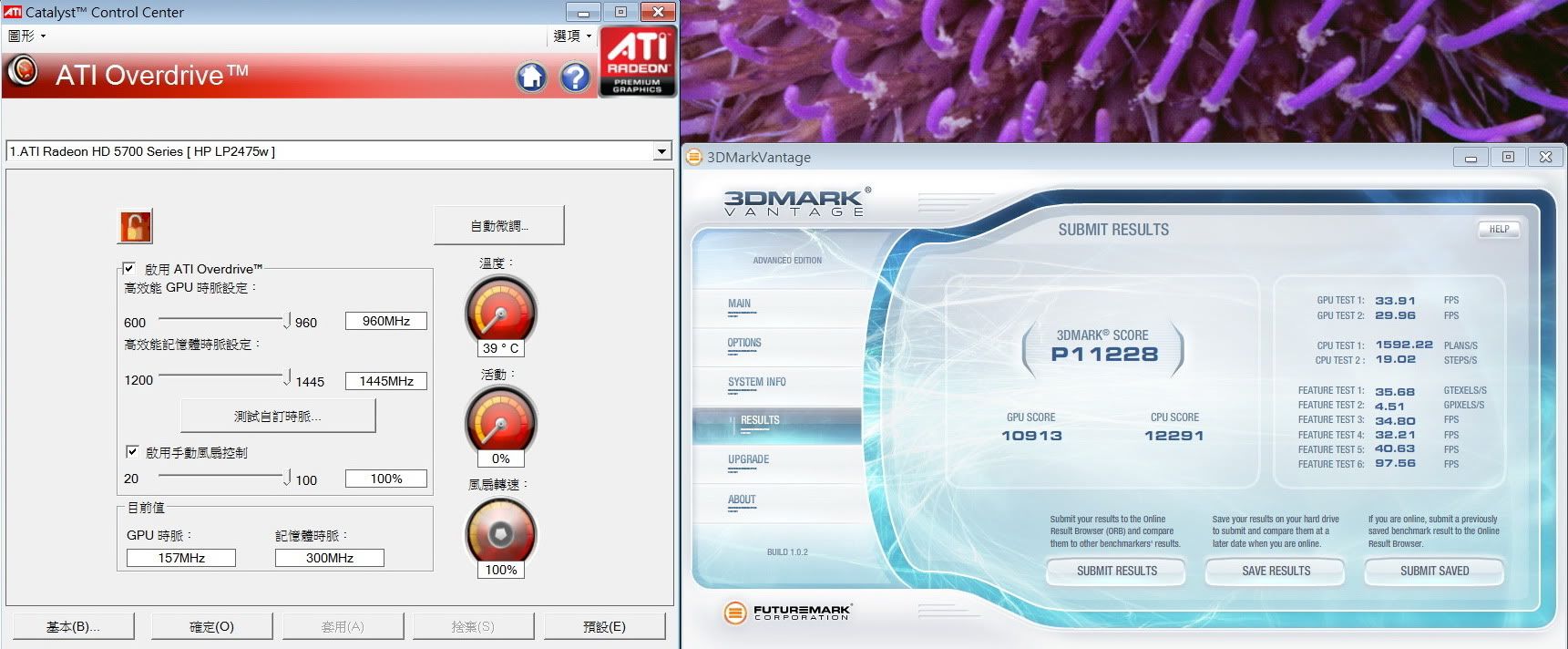

P11228 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-p-oc.jpg

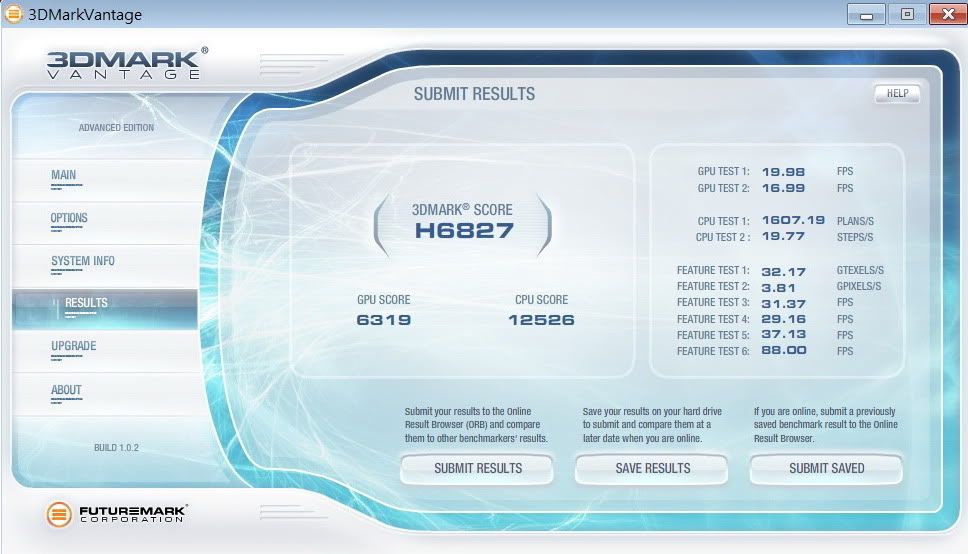

H6827
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-h.jpg
H7540 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-h-oc.jpg
X4731
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-x.jpg
X5267 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/R5770-3dv-x-oc.jpg
Heaven Benchmark v2.0
1920x1200 效果調到最高

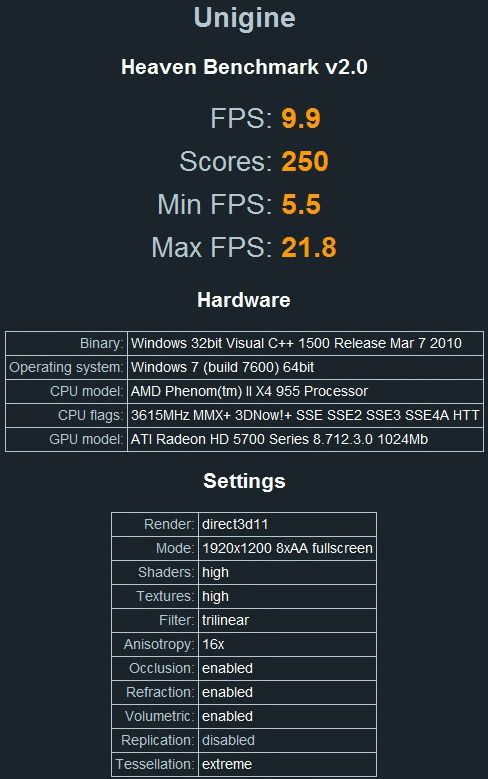

DX11
http://i279.photobucket.com/albums/kk149/hskao1983/dx11.jpg

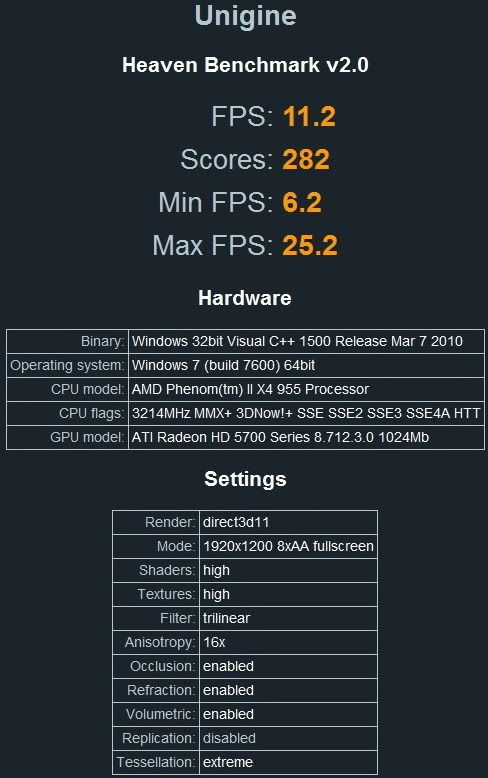

DX11 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/dx11oc.jpg
DX10
http://i279.photobucket.com/albums/kk149/hskao1983/dx10.jpg

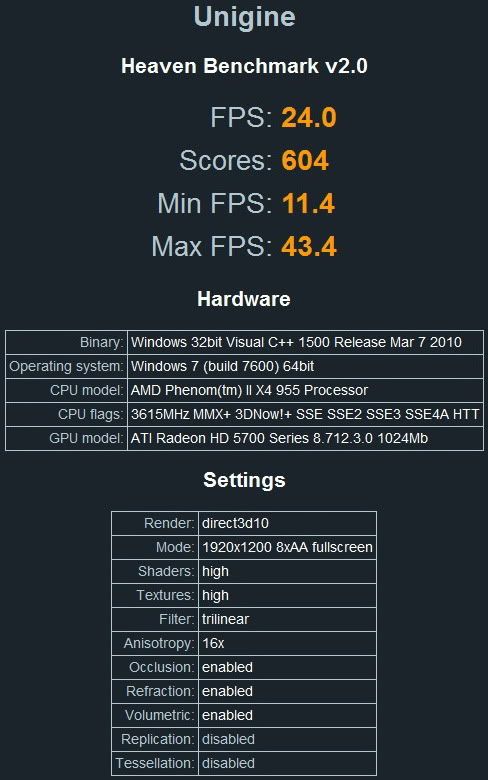

DX10 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/dx10oc.jpg

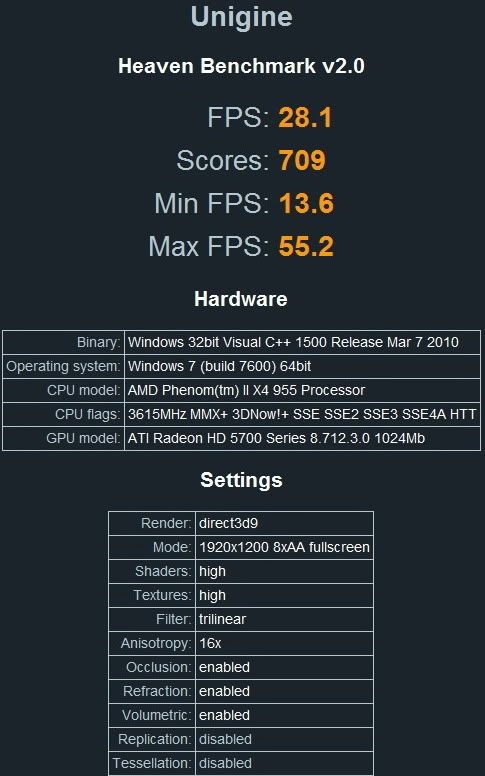

DX9
http://i279.photobucket.com/albums/kk149/hskao1983/dx9.jpg

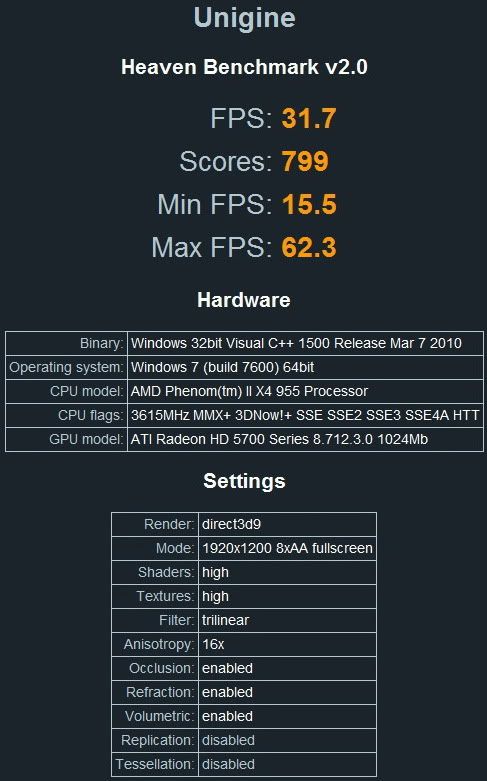

DX9 (OC 960/5780)
http://i279.photobucket.com/albums/kk149/hskao1983/dx9oc.jpg
..........[END]
--
※ 發信站: 批踢踢實業坊(ptt.cc)
◆ From: 220.132.59.15
推 color5566:同機殼推一個 04/10 18:55
推 wurenben:推一下,CPU同頻率下5850分數是P13985,咬著牙上吧:P 04/10 18:57
→ suzukihiro:這樣也要脫稿 XD 04/10 19:22
推 vic81324:XD 五系列DX11果然跟傳說一樣掉很大 04/10 20:20
→ vic81324:不過你DX11特效好像有不一樣的地方 04/10 20:23
推 IronChef:2475W推一下 04/10 20:54
推 Dxzoe:比Hawk還熱 也吵一點 04/10 21:23
→ a951l753vin:抽風扇本來就不強 只是對散熱循環比較好 04/11 13:25
→ Nafusica:有簡單到 XD 04/15 12:41
推 TOOYA:請問win7怎麼把第一個連結那些視窗叫出來啊?? 04/15 17:17
--
※ 發信站: 批踢踢實業坊(ptt.cc)
◆ From: 220.132.59.15
※ 編輯: hskao 來自: 220.132.59.15 (04/17 11:20)
